Product details:

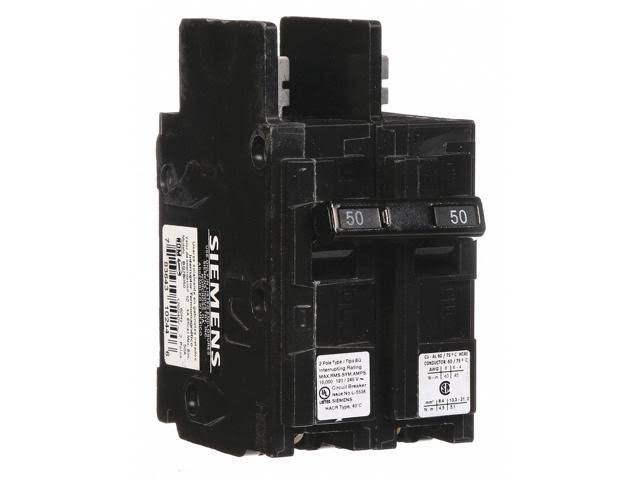

Circuit breaker, bolt on, air rating 10ka, standard circuit breaker type, number of poles 2, voltage 120/240vac, 50 amps, single phase, any phase connection, min wire size 8 awg, max wire size 6 awg, length 3. 75 In, width 2. 00 In, depth 3. 00 In, box lug terminal connection, for use with siemens panelboards, frame size 125 amp/bq, high amp trip setting 50 fixed, standards ul/ csa bq bolt-on circuit breakersuse with siemens panelboards.1-pole 120vac, except bqd series are 1-pole 277v 2-pole 120/240vac, except bqd series are 2-pole 277/480v 3-pole 240vac, except bqd series are 3-pole 277/480v box lug.
